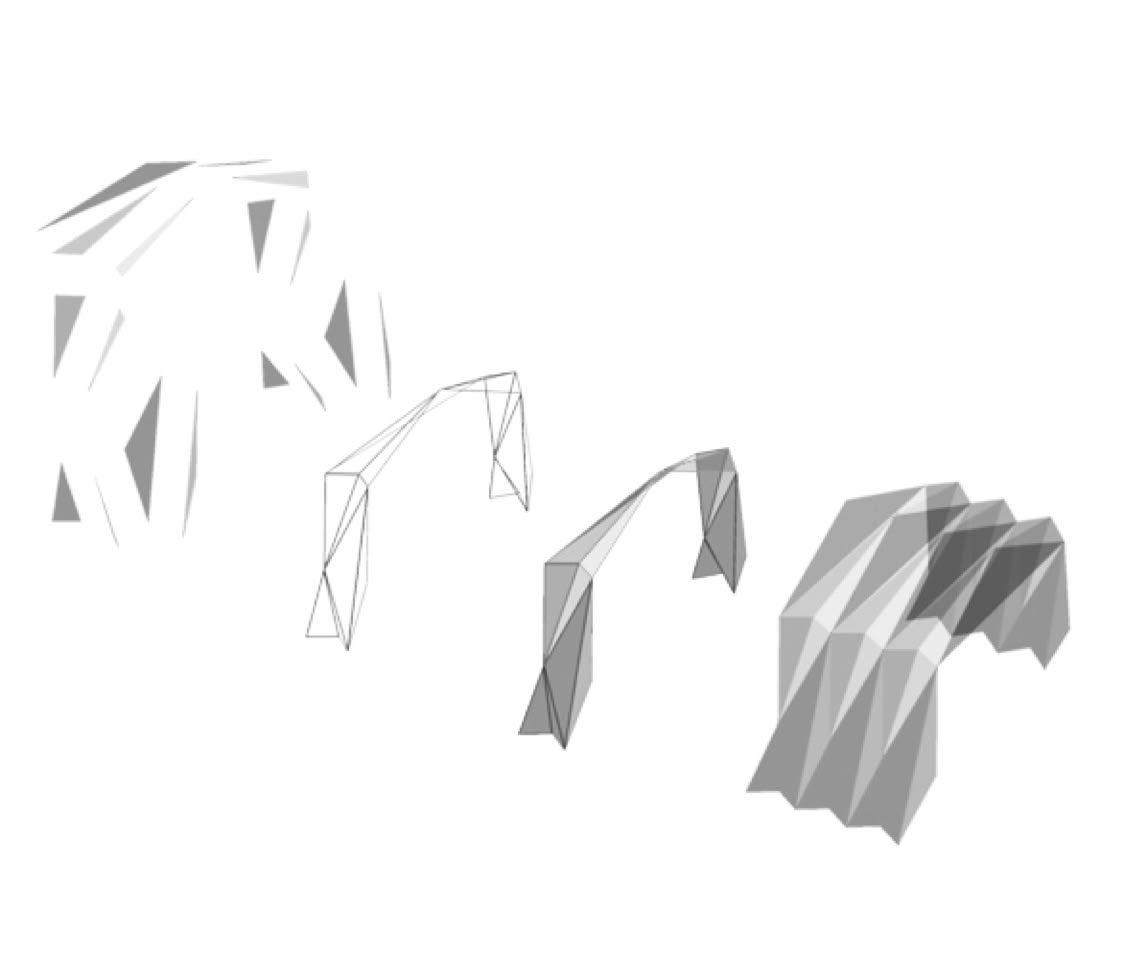

Axonometric drawing showing the component.

THE HARBOR PARK PAVILION

2005 Boston Harbor Pavilion Competition entry



The Harbor Park Pavilion is an approximately 2500 square feet structure on the new Rose Kennedy Greenway at Long Wharf in downtown Boston. It serves as the main downtown gateway to the Boston Harbor Islands national park area, and as a link in providing visitor information in the historic core of Boston.

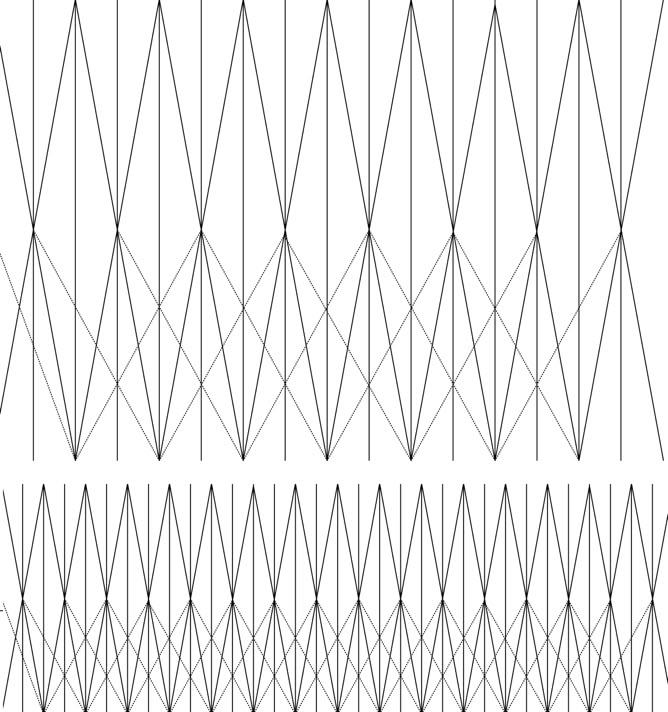

Diagrams for folding cladding materials.

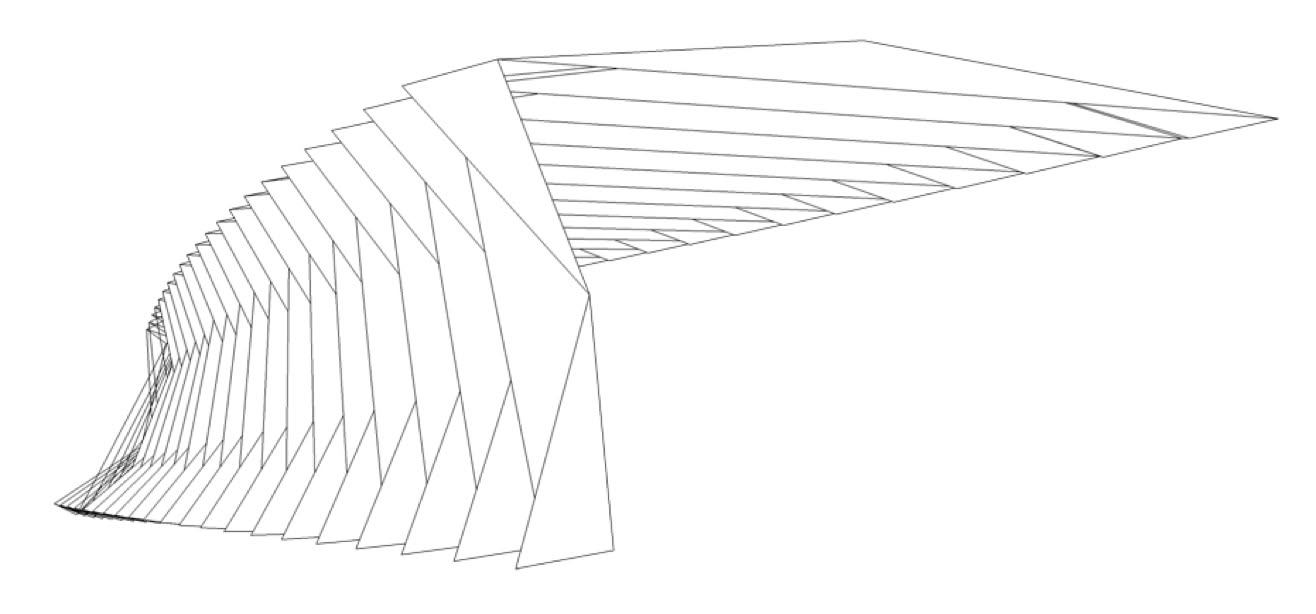

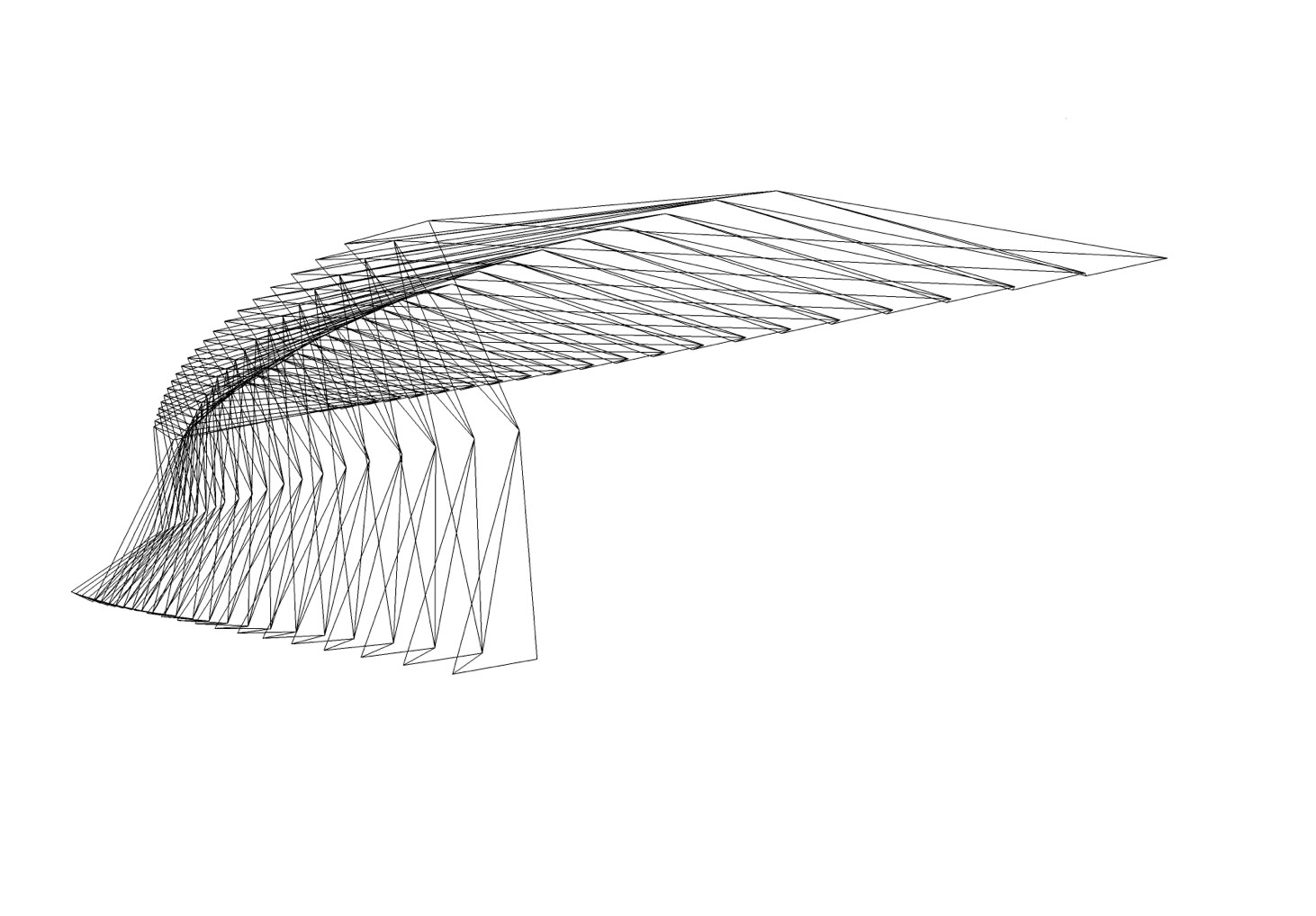

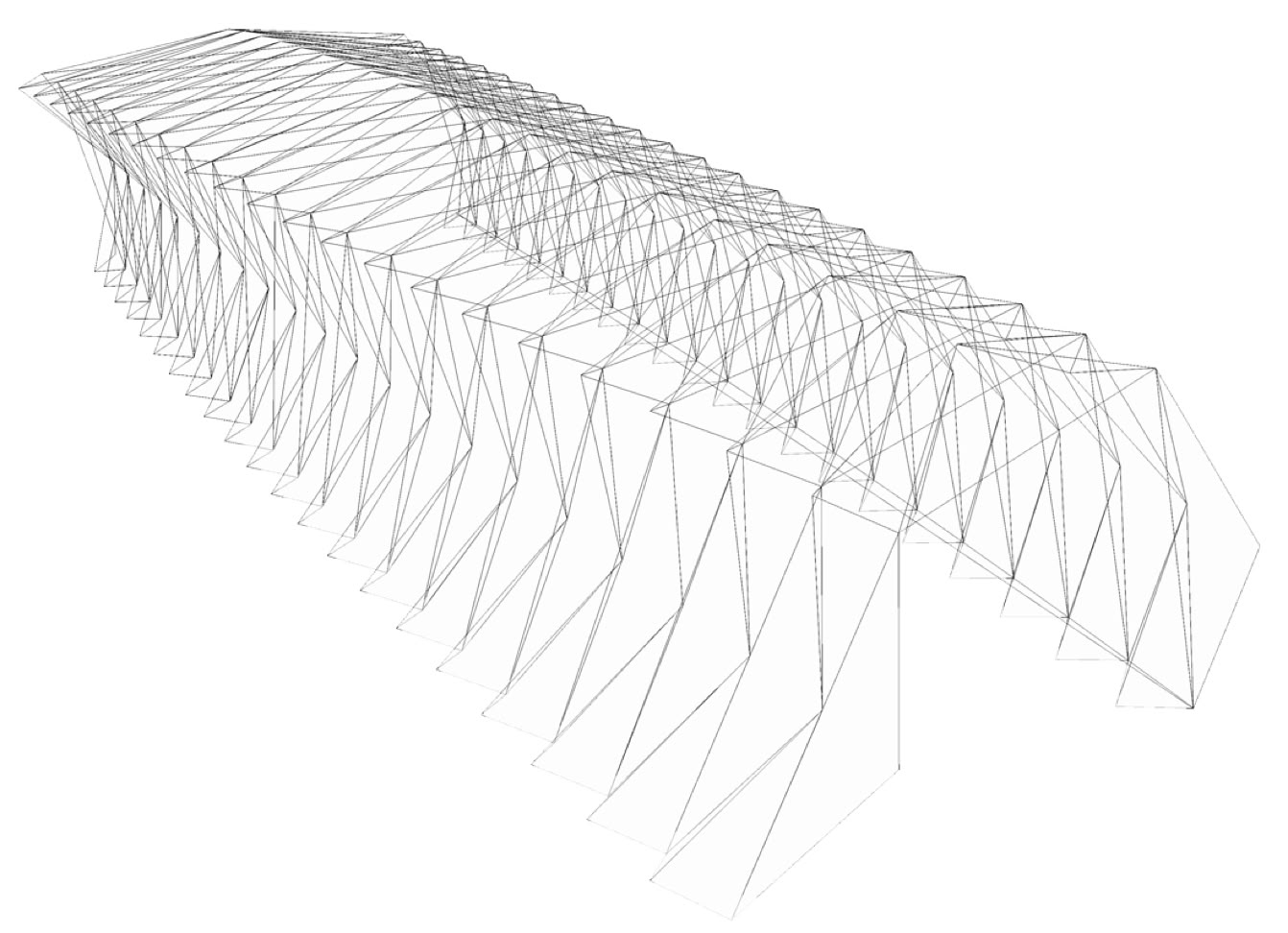

Axonometric drawing showing the hidden folding lines.

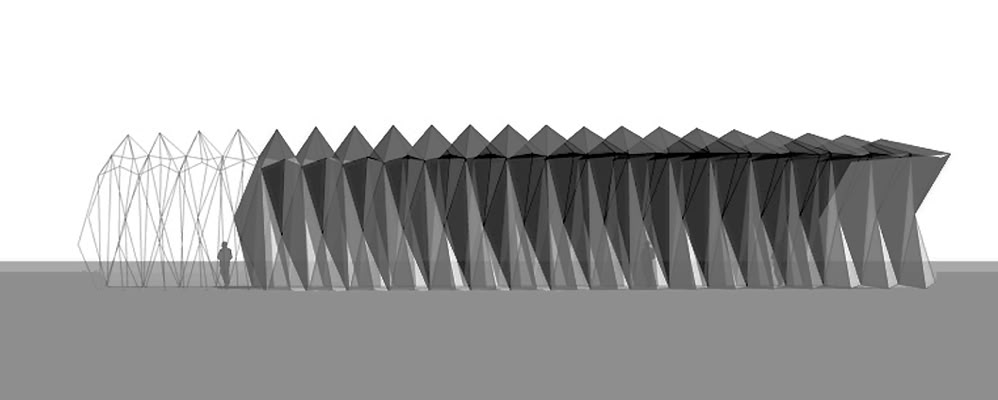

Elevation of the pavilion

Perspective view showing interior of the pavilion.

Perspective view showing roof and wall components in hidden line.

Perspective view showing roof and wall components with cladding.

Perspective view showing the pavilion.
